Long March 5

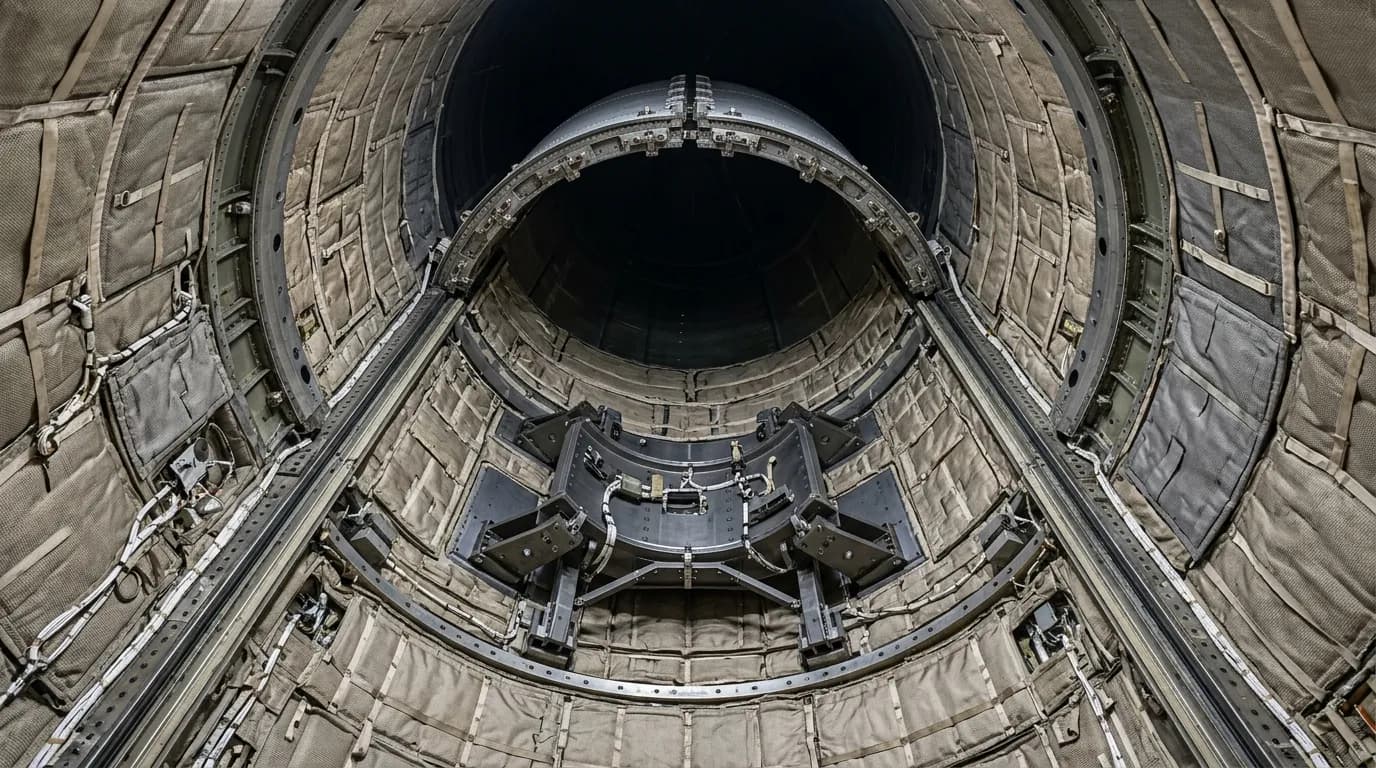

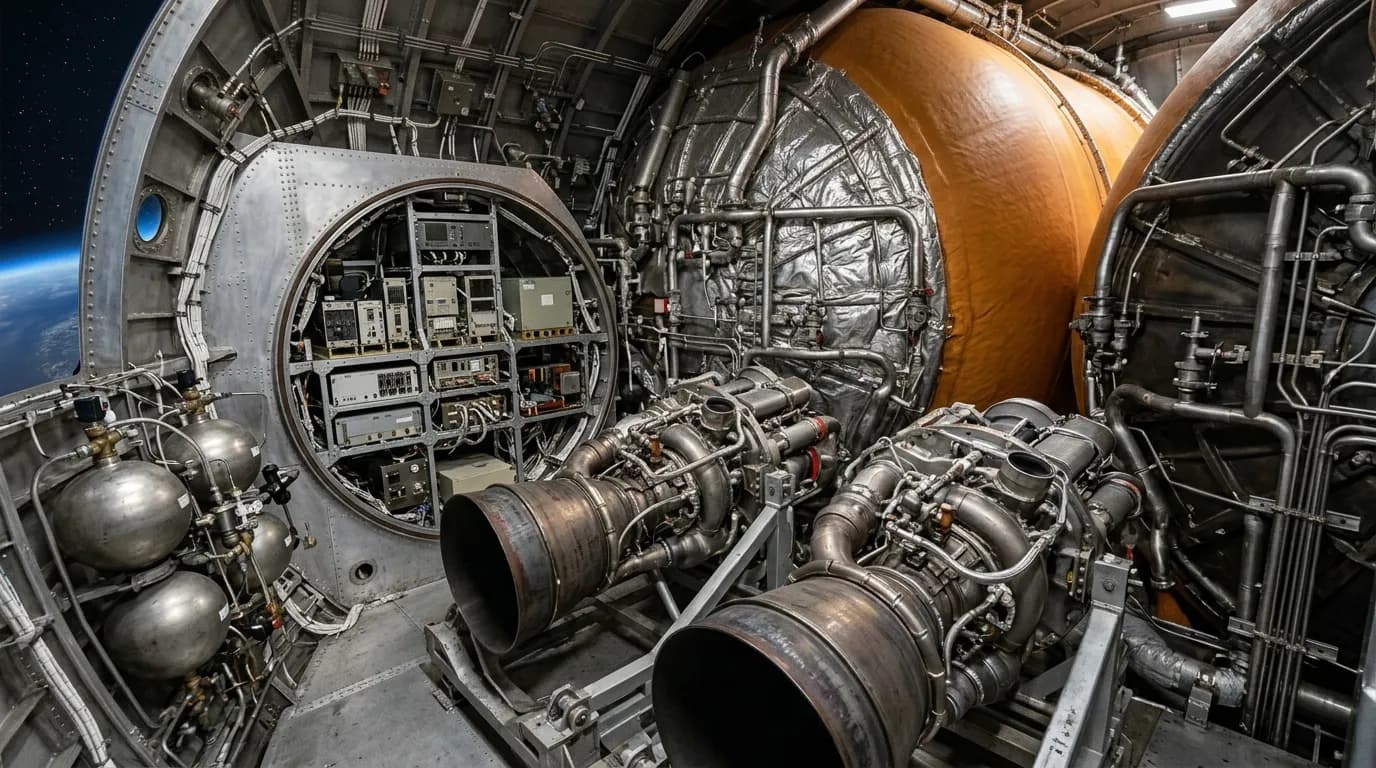

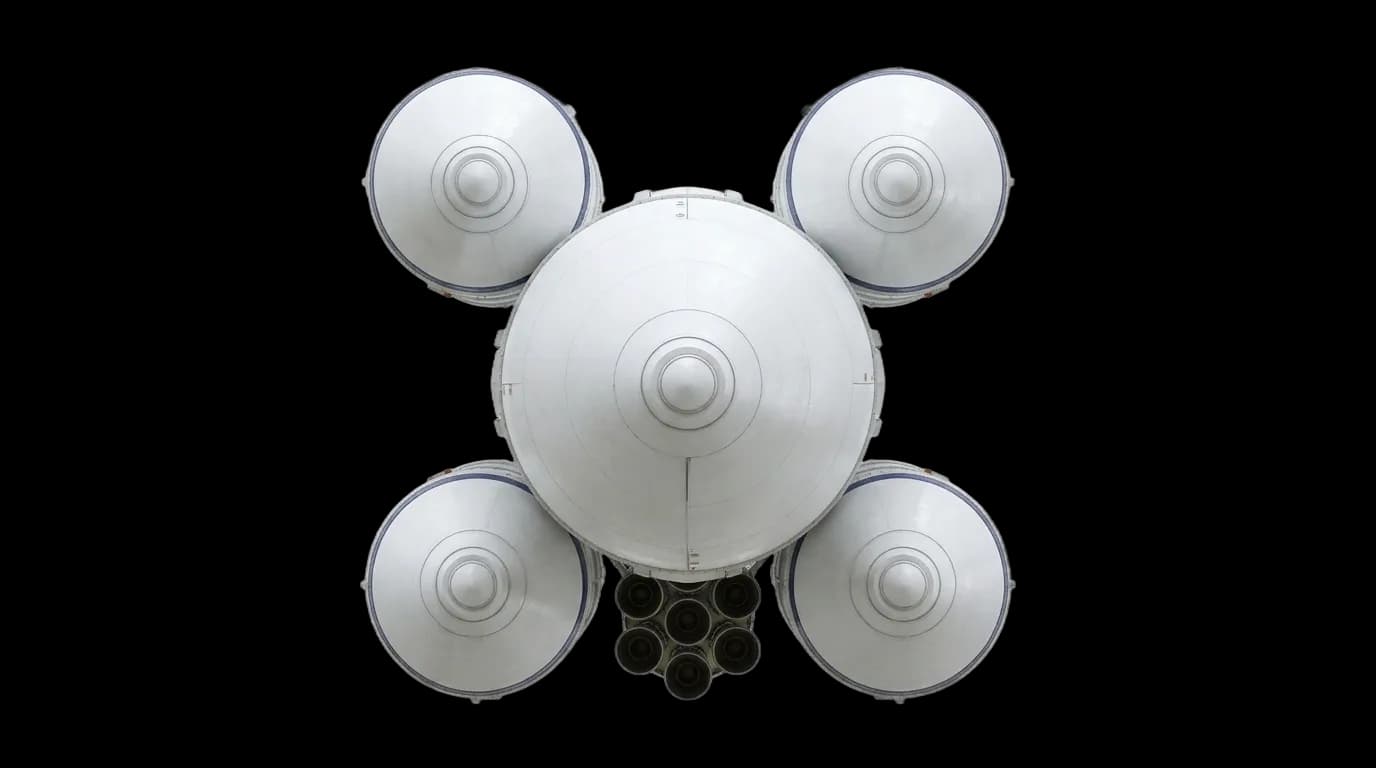

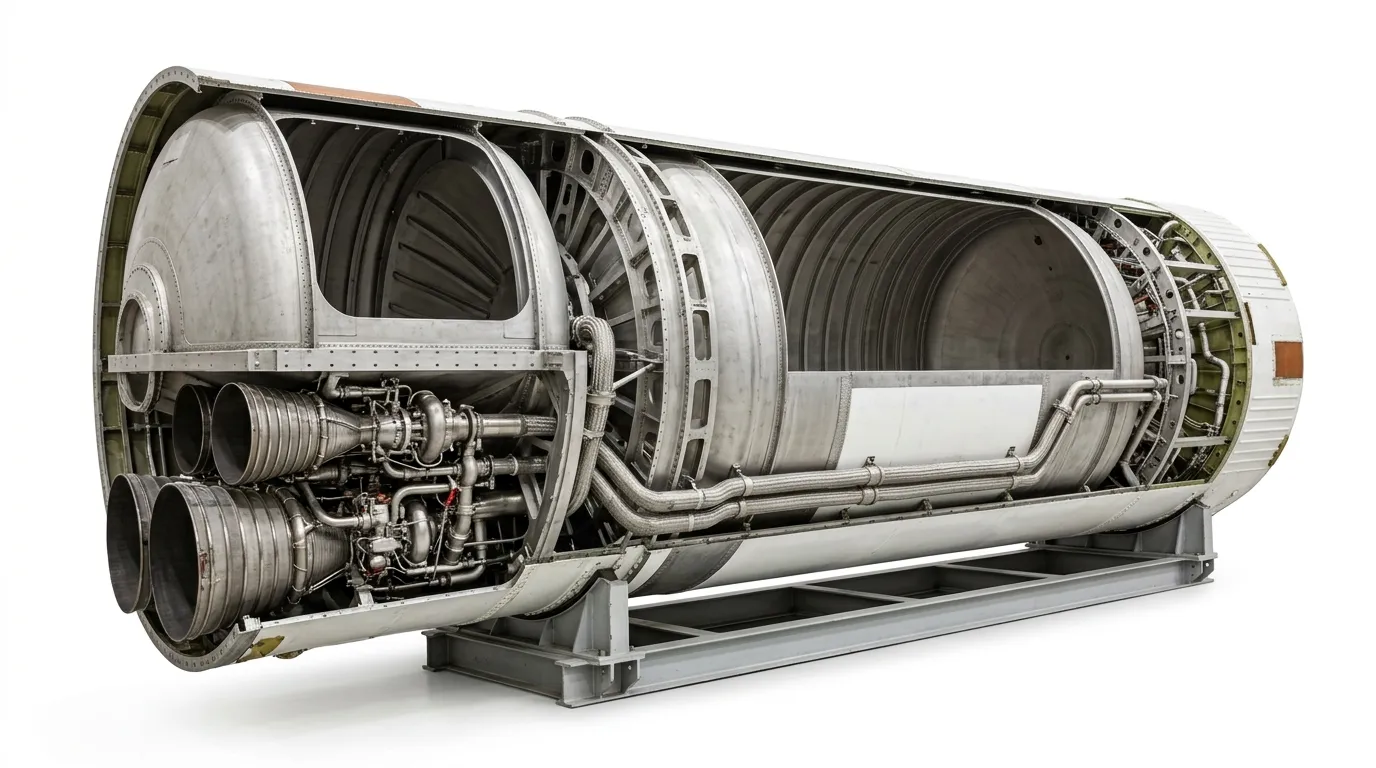

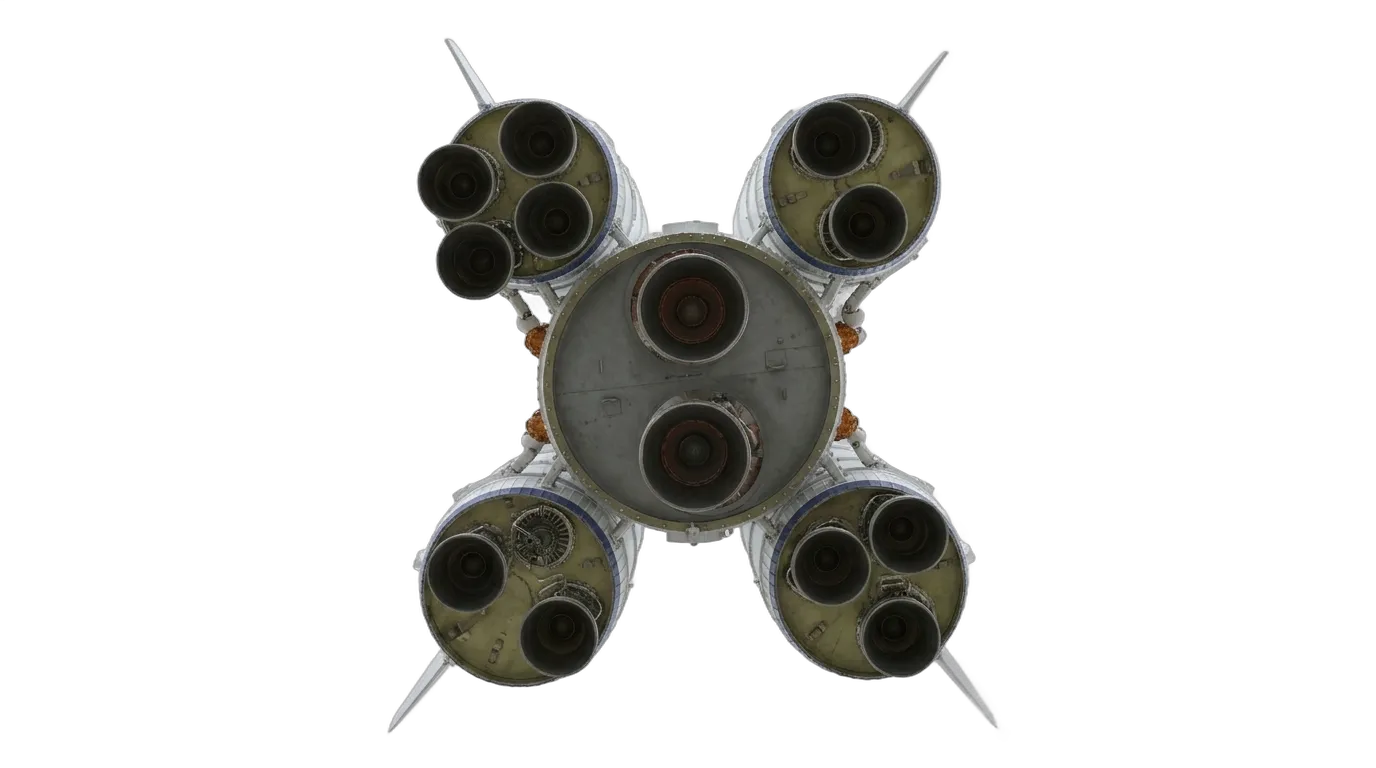

CALT Long March 5 2016 - Hero viewCALT Long March 5 2016 - Top View viewCALT Long March 5 2016 - Profile viewCALT Long March 5 2016 - Bottom View viewCALT Long March 5 2016 - Booster viewCALT Long March 5 2016 - Core Module viewCALT Long March 5 2016 - Fairing viewCALT Long March 5 2016 - Second Stage viewCALT Long March 5 2016 - Size Difference viewCALT Long March 5 2016 - Yf100 viewCALT Long March 5 2016 - Yf75d viewCALT Long March 5 2016 - Yf77 view
Hero
Record holder

China''s most powerful operational rocket. Long March 5 launched the Tianwen-1 Mars mission, the Chang''e 5 lunar sample return, and the core modules of the Tiangong space station. It represents China''s entry into the heavy-lift class.

History

Long March 5 (known in Chinese as Chang Zheng 5) was developed as China''s first heavy-lift launch vehicle, using a combination of liquid oxygen/kerosene strap-on boosters and a cryogenic liquid hydrogen/liquid oxygen core stage. Its development took over a decade and was set back by a failure on its second flight in July 2017.

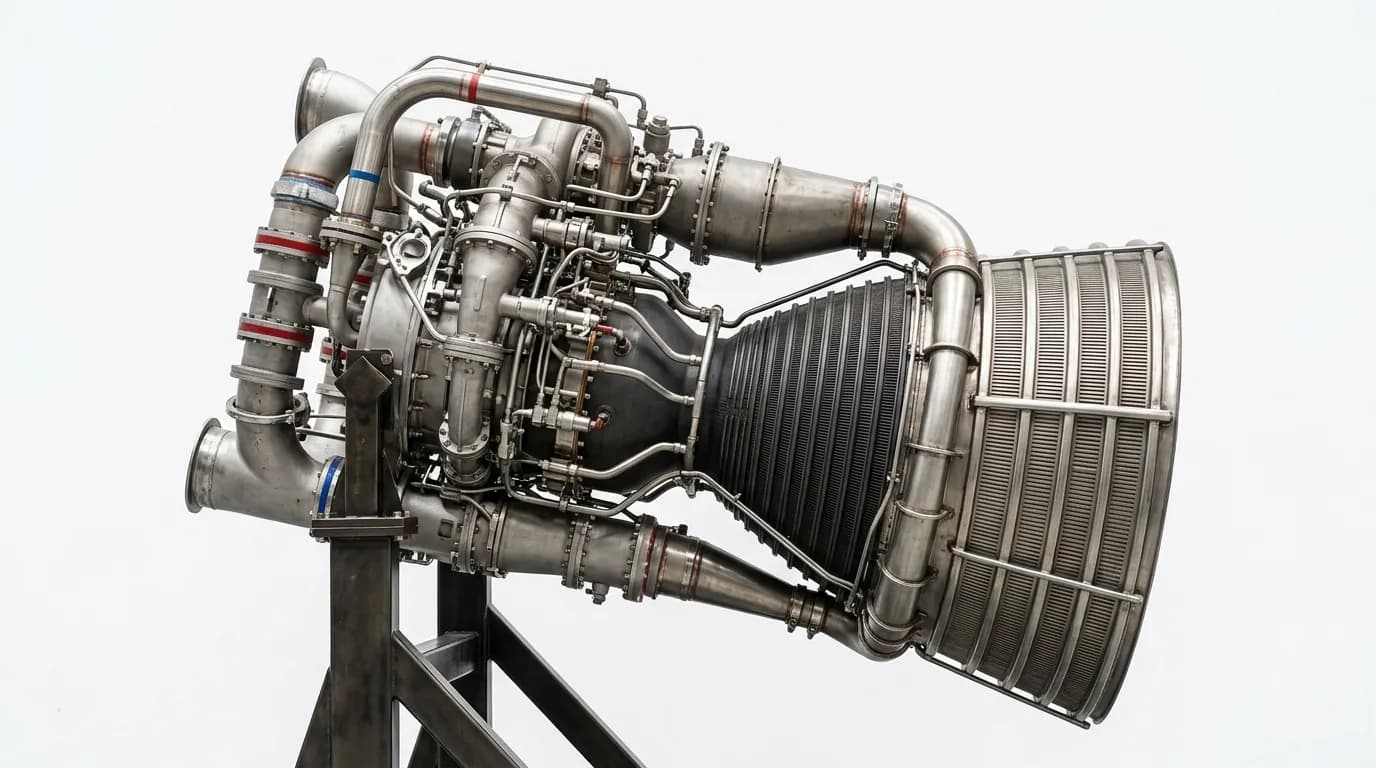

The failure, attributed to a turbopump problem in the core stage''s YF-77 engine, grounded the vehicle for over two years. When it returned to flight in December 2019, it successfully deployed a communications satellite, clearing the way for a series of ambitious missions.

Long March 5 subsequently launched the Tianwen-1 Mars mission (orbiter, lander, and rover) in July 2020, the Chang''e 5 lunar sample return mission in November 2020, and the Tianhe core module of the Tiangong space station in April 2021. It has established itself as the backbone of China''s most ambitious space endeavors.

Timeline

2016First flight
2017Its development took over a decade and was set back by a failure on its second flight in July 2017
2019When it returned to flight in December 2019
2020And rover) in July 2020, the Chang''e 5 lunar sample return mission in November 2020

Launch Heritage

Operational StatusOperational
Total Launches12/13 (92%)
Service Period2016
DesignerCALT
Mission TypeHeavy payload delivery
ReusabilityExpendable
Orbit TypeLEO
Target BodyEarth
Notable Missions
  • Tianwen-1
  • Chang'e 5
  • Tiangong space station modules
  • Mengtian

Technical Specifications

PropulsionLiquid (RP-1 + LH2)
Height186.9 ft
Length186.9 ft
Diameter/Wingspan16.4 ft
Gross Mass1,911,406 lbs

Propulsion

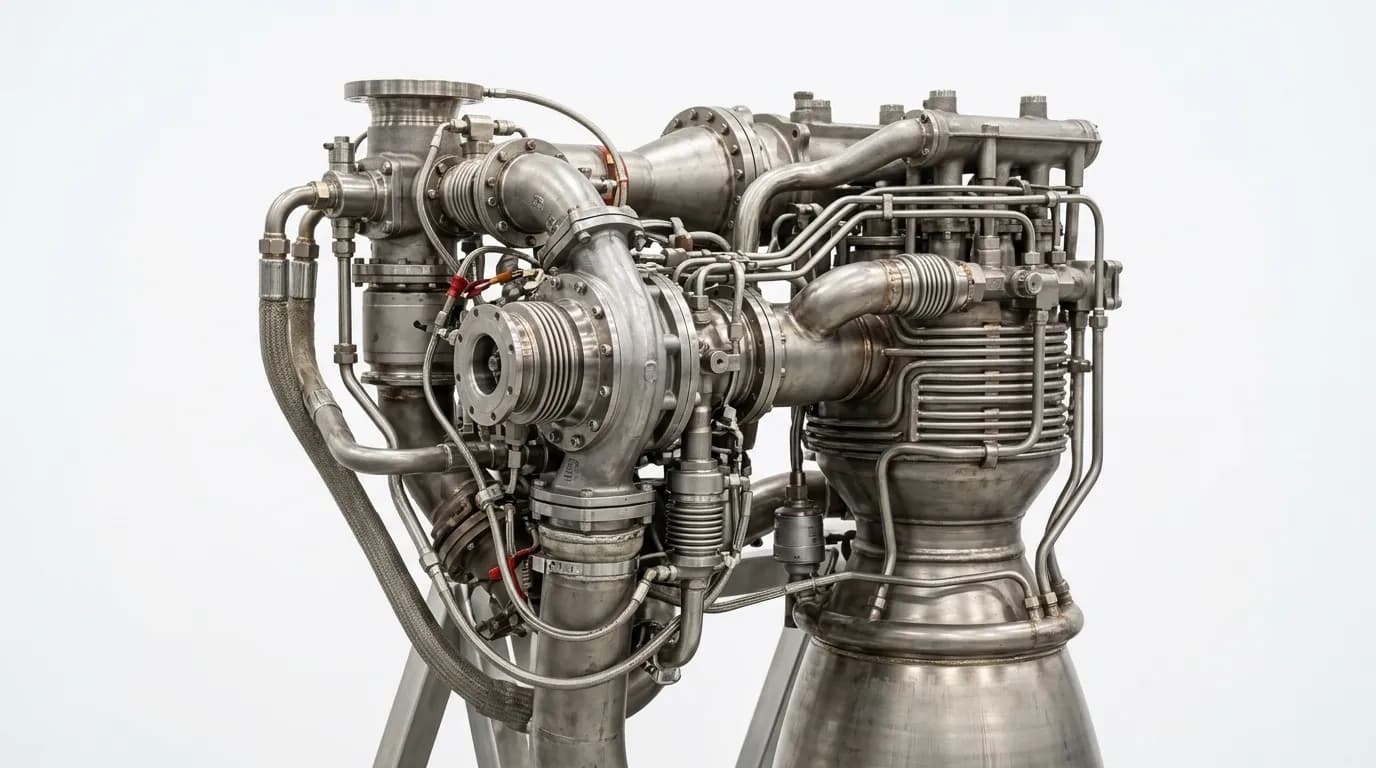

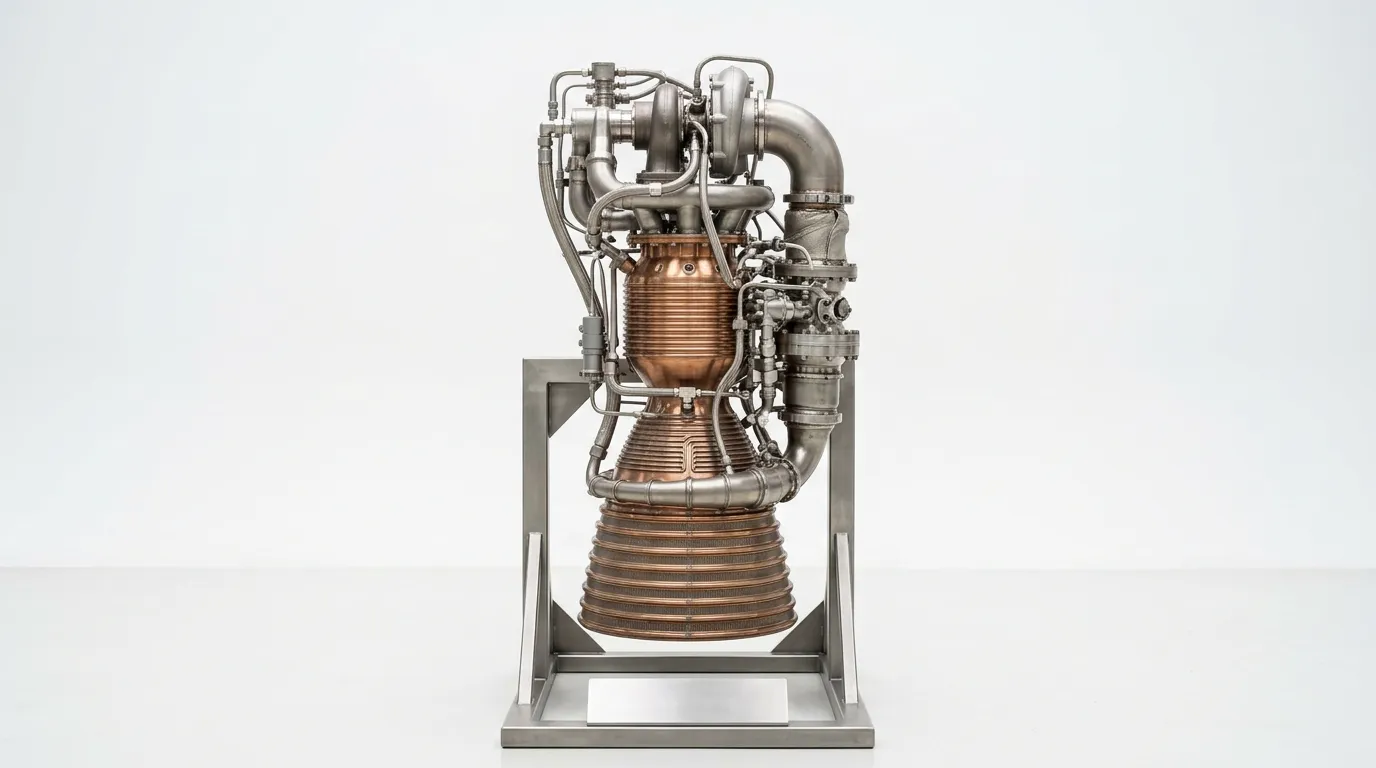

Engine ModelYF-77 (core, 2 engines) + YF-100 (boosters, 8 engines) + YF-75D (upper stage, 2 engines)
Engine Count12
Engine ManufacturerAALPT / CALT
Thrust10565 kN
Specific Impulse428 s
PropellantLH2/LOX (core + upper) + RP-1/LOX (boosters)
Stages2
Boosters4

Performance

Payload to LEO25,000 kg
Payload to GTO14,000 kg

Dimensions

Height (m)56.97 m
Diameter (m)5 m
Length (m)56.97 m

Mass

Empty Mass (kg)48,000 kg
Gross Mass (kg)867,000 kg

Mission

Mission DurationActive since 2016, launched Tianwen-1, Chang'e 5, Tiangong modules
Missions Flown9
Success Rate8/9
ReusableNo

Power & Systems

AvionicsDigital flight computer, BeiDou navigation
Communication BandS-band, C-band

Source: CNSA/CASC
